Prior Art Search Invalidates Active Rectifier Patent

PROBLEM STATEMENT

The Client’s Challenge

A client sought support in invalidating a patent related to an active rectifier, an AC-to-DC conversion circuit designed to improve efficiency by replacing conventional diode-based rectification with actively controlled semiconductor switches.

The subject patent described a switching architecture in which four switches controlled current flow according to the polarity of the incoming AC signal. The first and fourth switches operated during the negative AC voltage cycle while the second and third switches operated during the positive cycle, directing the resulting current toward a rectifying capacitor.

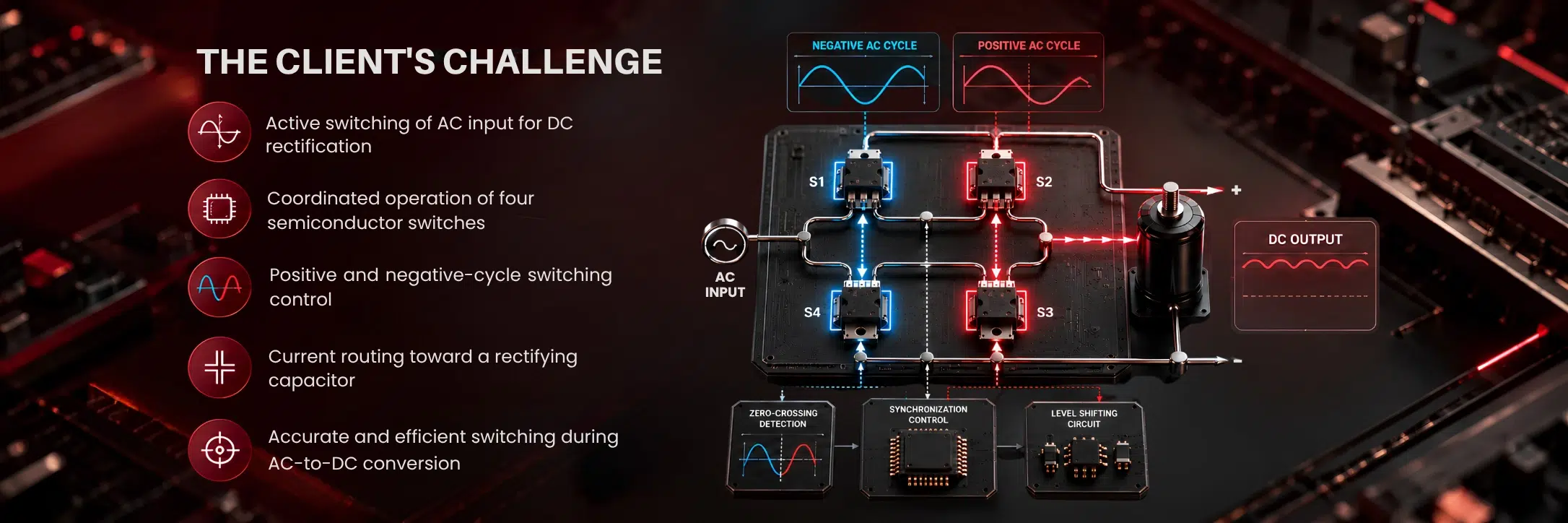

The investigation focused on the technical concepts represented by the claimed architecture:

- Active switching of an AC input for DC rectification
- Coordinated operation of four semiconductor switches
- Positive- and negative-cycle switching control
- Current routing toward a rectifying capacitor
- Accurate and efficient switching during AC-to-DC conversion

CLIENT’S OBJECTIVE

Identify prior art capable of challenging the validity of the subject patent.

Determining whether the patent’s claimed combination of active rectification, synchronization control and level-shifting circuitry had already been disclosed in earlier technical systems.

Had earlier technology already addressed the same switching-control problems through substantially the same circuit architecture?

Traditional Prior Art Search Approach

The investigation initially followed a conventional invalidation-search methodology. The initial objective was to identify patent publications containing technical disclosures relevant to the claimed circuit architecture.

Conventional Investigation Strategy

Patent & Prosecution Review

Keyword & Classification Search

Patent Screening

Technical Comparison

The search produced several patents addressing closely related technologies, including active rectification, level shifting and switching control. However, similarity at the individual-feature level did not necessarily establish disclosure of the claimed combination.

Traditional Prior Art Search Workflow

Patent & Prosecution Review

Review claims and specification
Analyze prosecution history
Identify potential novelty points

Keyword & Synonym Search

Define core technical terms
Identify relevant technical synonyms
Apply Boolean search operators

Classification & Assignee Search

Identify relevant CPC classes
Search using assignee names
Refine results by relevance

Patent Screening

Review titles and abstracts
Examine claims and embodiments
Analyze relevant circuit diagrams

Feature-Level Mapping

Map individual claim elements
Compare switching circuit configurations
Identify synchronization and level-shifting features

Prior Art Gap Analysis

Identify remaining technical gaps
Compare differing circuit implementations
Assess single-reference disclosure potential

Non-Patent Literature Search

Search technical research papers
Review engineering publications and articles
Identify earlier technical disclosures

Novelty & Validity Assessment

Evaluate disclosure of claim elements
Assess technical overlap with claims
Determine potential validity weaknesses

Outcome: Identify prior-art references addressing the claimed active rectifier architecture and assess whether the disclosed switching, synchronization and level-shifting techniques could challenge patent validity.

Limitations of Traditional Approaches

Relevant circuit features were fragmented across multiple references.
Different terminology made key synchronization and control disclosures difficult to locate.
Interactions between zero-crossing detection, switching and level shifting were not clearly disclosed.
Feature-by-feature matching did not establish the complete claimed functionality.
Deeper technical correlation was required to establish the relevance of identified disclosures.

As a result, relying exclusively on conventional keyword and document-based searching risked overlooking prior technology that disclosed the relevant circuit architecture and functional relationships through different terminology or technical contexts.

Start a Conversation →

Wissen’s Out-of-the-Box Approach:

Targeted Prior Art Through Circuit Architecture Analysis

Recognizing the limitations of conventional literature-based searching, the strategy evolved beyond searching individual circuit features to identify prior art based on the functional relationships within the active rectifier architecture.
To enable a more focused assessment of prior art evidence, the investigation expanded beyond broad keyword searches to include technical disclosures that were:

Related to active rectifier architectures
Directed to synchronized switch control
Addressing comparator delay during AC zero-crossing detection

Identifying Relevant Prior Art

A focused technical investigation was conducted on patents and non-patent literature describing active rectifier systems and their associated control mechanisms.
However, individual disclosures did not always present these features in the same terminology or circuit context as the subject patent.
To overcome this limitation, the search strategy was refined around the underlying circuit architecture and the technical relationships between the claimed control functions.

Our Methodology

Traditional Search Limitations

Fragmented disclosures across references
Different terminology for similar circuit functions
Limited architectural correlation

Patent & Prosecution History Analysis

Analyze claim scope and technical features
Identify potential novelty points
Extract key circuit terminology

Targeted Patent Search

Use technical synonyms and claim concepts
Apply classification codes and assignee information
Search combinations of key circuit functions

Synchronization & Level-Shifting Analysis

Analyze zero-crossing synchronization
Identify comparator-delay compensation
Examine level-shifting and threshold-voltage control

Non-Patent Literature Search

Review technical articles and research papers
Identify earlier active rectifier implementations
Correlate technical disclosures with claim elements

Technical Prior Art Correlation

Map switching and rectification functions
Correlate synchronization and level-shifting mechanisms
Assess technical overlap with the patent claims

Invalidation Assessment

Establish earlier disclosure of key technical features
Assess novelty implications
Develop a technically supported invalidation position

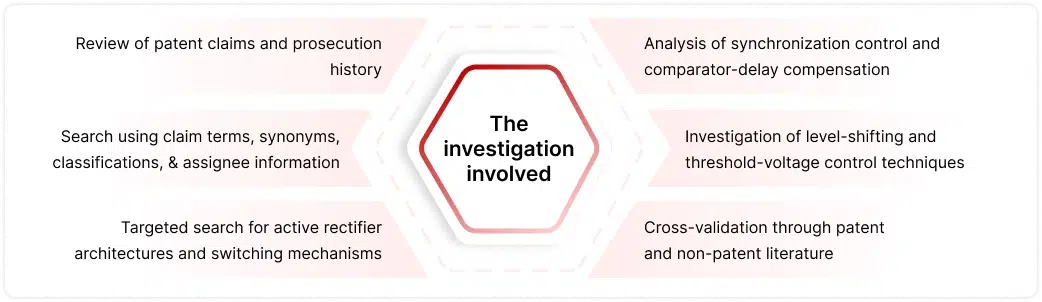

Prior Art Search Methodology

The investigation focused on patent publications and non-patent literature containing disclosures of active rectifier architectures and associated switching-control techniques relevant to the subject patent.

The targeted search revealed earlier technical disclosures addressing active rectification, synchronized switching, comparator-delay compensation and level-shifting techniques for controlled semiconductor switches.

Most importantly, the findings demonstrated that the core technical concepts underlying the claimed active rectifier had already been addressed in earlier systems, providing strong technical support for challenging the patent’s novelty and validity.

Evidence Collection & Validation

To establish the relevance and reliability of the identified prior art, the investigation used multiple technical sources and cross-validated the findings, including:

Patent publications

Technical research papers

Active rectifier disclosures

Cross-reference validation

Pre-existing technology verification

This evidence-based validation confirmed that the key technical concepts underlying the claimed active rectifier had been addressed in earlier technology, supporting the patent invalidation position.

Technical Challenges Addressed Through Prior Art Analysis

Challenge 1: Identifying the Claimed Switching Architecture

A key technical question was whether earlier active rectifier systems had already implemented the claimed arrangement of actively controlled switches operating according to the positive and negative AC cycles.

Solution

The investigation examined prior art covering active AC-to-DC conversion and analyzed the switching sequence, current paths and interaction with the rectifying capacitor. The analysis identified earlier active rectifier implementations in which controlled semiconductor switches managed current flow during respective AC cycles.

The findings revealed:

Positive-cycle switch operation
Negative-cycle switch operation
Controlled current paths
Rectifying capacitor integration

These disclosures demonstrated that the fundamental switching architecture underlying the claimed active rectifier had been addressed in earlier technology.

Challenge 2: Establishing Synchronization and Level-Shifting Techniques

Another key technical question was whether the synchronization control and level-shifting mechanisms claimed for accurate switch operation had already been disclosed in prior technology.

Solution

The search was refined to target the specific relationship between AC zero-crossing detection, comparator-delay compensation, and voltage-level adjustment for semiconductor switch control.

The investigation identified prior disclosures addressing:

AC zero-crossing synchronization
Comparator-delay compensation
Switch-control timing
Threshold-voltage adjustment

These findings demonstrated that the control techniques used to improve switching accuracy and accommodate voltage thresholds were also present in earlier technical solutions.

Results & Business Impact

The investigation ultimately identified earlier systems that addressed the principal technical concepts underlying the subject patent’s active rectifier architecture.

Key Outcomes

Identified prior technology implementing active AC-to-DC rectification using controlled semiconductor switches.
Established earlier approaches to polarity-dependent switching during AC cycles.
Identified prior approaches addressing synchronization and switching timing associated with AC zero-crossing detection.
Identified level-shifting techniques relevant to semiconductor switch control and threshold-voltage requirements.
Expanded the evidence base beyond conventional patent searching into non-patent technical literature.
Provided technically supported evidence for challenging the patent’s validity.

Strategic Business Impact

The project demonstrated why invalidation searches for complex electronics patents cannot always be reduced to keyword matching. A search strategy built around those relationships can provide several advantages:

More precise prior-art identification by targeting technical interactions.
Broader coverage through alternative terminology and non-patent literature.
Improved technical confidence through correlation of circuit-level concepts.
Earlier identification of invalidation opportunities where conventional searches produce only partial matches.

A reference that merely contains an active rectifier may have limited value. A reference that demonstrates how the rectifier’s switching, synchronization and voltage-level mechanisms work together can provide substantially more meaningful insight into the validity of the claimed architecture.

Conclusion & Implications

This case demonstrates how a targeted prior-art strategy can uncover weaknesses in patents covering complex power-electronics architectures.
By refining search terminology, incorporating classification and assignee-based searching, and expanding the investigation into non-patent literature, earlier systems addressing the same underlying technical problems were identified.
The resulting evidence demonstrated that active rectification, polarity-dependent switching, synchronization of switching control, compensation for detection delay and level-shifting techniques were present in earlier technology.
The project ultimately supported the conclusion that the claimed invention was not novel in view of the identified prior technology and provided a technically grounded basis for challenging the patent’s validity.
The investigation reinforced several principles:

Search beyond claim terminology

Analyze circuit element relationships

Use broader technical synonyms

Expand into non-patent literature
